They are really powerful to setup things needed by your role. Since the startup tasks are packaged in your cloud service, the problem comes when you want to use the same cloud service for hundreds of deployments, and you need to customize at least some of these startup tasks per deployment. Or you just simply want to customize the startup tasks without rebuilding and/or redeploying your cloud service.
After thinking on different approaches to implement this scenario without adding more complexity to the application lifecycle management, a good way of doing it would be to have the opportunity to specify startup tasks on a location outside the cloud service package. In summary, to have a startup task that downloads a set of external startup tasks from an Uri and executes them in order.
Let’s see how this can be achieved.
You can download the example code from this Url: http://sdrv.ms/1dY86lt
Let’s check one by one to fully understand how this works.
In the service definition file (ServiceDefinition.csdef), what we are going to do is to specify a new startup task as follows:
<Startup>
<Task executionContext="elevated" commandLine="scripts\SetupExternalTasks.cmd" taskType="simple">
<Environment>
<Variable name="EMULATED">
<RoleInstanceValue xpath="/RoleEnvironment/Deployment/@emulated" />
</Variable>
<Variable name="EXTERNALTASKURL">
<RoleInstanceValue xpath="/RoleEnvironment/CurrentInstance/ConfigurationSettings/ConfigurationSetting[@name='Startup.ExternalTasksUrl']/@value" />
</Variable>
</Environment>
</Task>
</Startup>
The startup task executes a script located on “scripts/SetupExternalTasks.cmd” in “simple” mode (the worker role OnStart event will not occur until the task completes, but you can change this behavior by modifying this attribute or by adding another task with the desired taskType). Two variables are passed:
This Url is configured in the ServiceConfiguration.*.cscfg files as any other setting:
As the startup tasks are executed before the role starts, any change on this setting would recycle the role to execute them again. The following code just do this:
public override bool OnStart()
{
// Set the maximum number of concurrent connections
ServicePointManager.DefaultConnectionLimit = 12;
// For information on handling configuration changes
// see the MSDN topic at http://go.microsoft.com/fwlink/?LinkId=166357.
// Setup OnChanging event
RoleEnvironment.Changing += RoleEnvironmentOnChanging;
return base.OnStart();
}
/// <summary>
/// This event is called after configuration changes have been submited to Windows Azure but before they have been applied in this instance
/// </summary>
/// <param name="sender">The sender.</param>
/// <param name="e">The <see cref="RoleEnvironmentChangingEventArgs" /> instance containing the event data.</param>
private void RoleEnvironmentOnChanging(object sender, RoleEnvironmentChangingEventArgs e)
{
// Implements the changes after restarting the role instance
foreach (RoleEnvironmentConfigurationSettingChange settingChange in e.Changes.Where(x => x is RoleEnvironmentConfigurationSettingChange))
{
switch (settingChange.ConfigurationSettingName)
{
case "Startup.ExternalTasksUrl":
Trace.TraceWarning("The specified configuration changes can't be made on a running instance. Recycling...");
e.Cancel = true;
return;
}
}
}
Now let’s take a look to the task that is executed at the beginning. The variables are checked to skip this setup if you are running on a development environment –you may want to remove/comment the first line- or if the Url setting is empty:
if "%EMULATED%"=="true" goto SKIP
if "%EXTERNALTASKURL%"=="" goto SKIP
cd %ROLEROOT%\approot\scripts
md %ROLEROOT%\approot\scripts\external
reg add HKLM\Software\Microsoft\PowerShell\1\ShellIds\Microsoft.PowerShell /v ExecutionPolicy /d Unrestricted /f
powershell .\SetupExternalTasks.ps1 -tasksUrl "%EXTERNALTASKURL%" >> ExternalTasks.log 2>> ExternalTasks_err.log
:SKIP
EXIT /B 0
Then a folder “external” is created to store all the downloaded stuff inside, to don’t interfere with other scripts in the solution while downloading. Finally the powershell script is called with the Url as parameter. Both standard and error outputs are redirected to log files.
Finally, the powershell script that does all the work is called. Note that the script supports three types of external files: a “.cmd” file; a “.ps1” file; or a “.zip” file that can contain one or more startup tasks:
param (
[string]$tasksUrl = $(throw "-taskUrl is required."),
[string]$localFolder = ""
)
# Function to unzip file contents
function Expand-ZIPFile($file, $destination)
{
$shell = new-object -com shell.application
$zip = $shell.NameSpace($file)
foreach($item in $zip.items())
{
# Unzip the file with 0x14 (overwrite silently)
$shell.Namespace($destination).copyhere($item, 0x14)
}
}
# Function to write a log
function Write-Log($message) {
$date = get-date -Format "yyyy-MM-dd HH:mm:ss"
$content = "`n$date - $message"
Add-Content $localfolder\SetupExternalTasks.log $content
}
if ($tasksUrl -eq "") {
exit
}
if ($localFolder -eq "") {
$localFolder = "$pwd\External"
}
# Create folder if does not exist
Write-Log "Creating folder $localFolder"
New-Item -ItemType Directory -Force -Path $localFolder
cd $localFolder
$file = "$localFolder\ExternalTasks.cmd"
if ($tasksUrl.ToLower().EndsWith(".zip")) {
$file = "$localFolder\ExternalTasks.zip"
}
if ($tasksUrl.ToLower().EndsWith(".ps1")) {
$file = "$localFolder\ExternalTasks.ps1"
}
# Download the tasks file
Write-Log "Downloading external file $file"
$webclient = New-Object System.Net.WebClient
$webclient.DownloadFile($tasksUrl,$file)
Write-Log "Download completed"
# If the tasks are zipped, unzip them first
if ($tasksUrl.ToLower().EndsWith(".zip")) {
Write-Log "Unzipping $localFolder\ExternalTasks.zip"
Expand-ZIPFile -file "$localFolder\ExternalTasks.zip" -destination $localFolder
Write-Log "Unzip completed"
# When a .zip file is specied, only files called "Task???.cmd" and "Task???.ps1" will be executed
# This allows to include assemblies and other file dependencies in the zip file
Get-ChildItem $localFolder | Where-Object {$_.Name.ToLower() -match "task[0-9][0-9][0-9].[cmd|ps1]"} | Sort-Object $_.Name | ForEach-Object {
Write-Log "Executing $localfolder\$_"
if ($_.Name.ToLower().EndsWith(".ps1")) {
powershell.exe "$localFolder\$_"
}
elseif ($_.Name.ToLower().EndsWith(".cmd")) {
cmd.exe /C "$localFolder\$_"
}
}
}
elseif ($tasksUrl.ToLower().EndsWith(".ps1")) {
powershell.exe $file
}
elseif ($tasksUrl.ToLower().EndsWith(".cmd")) {
cmd.exe /C $file
}
Write-Log "External tasks execution finished"
In the case of a “.zip” file, the scripts expects the startup tasks with the name “Task???.cmd” or “Task???.ps1”, and executes them in order. Note that you can package file dependencies in the zip file such as .msi files, assemblies, other .cmd/.ps1 files, etc. and only the tasks with this pattern will be called by the script.
The attached example downloads an external .zip file located at https://davidjrh.blob.core.windows.net/public/code/ExternalTaskExample.zip. This .zip file contains two tasks “Task001.cmd” and “Task002.cmd”. After starting the role, we can verify that in the “scripts” subfolder the following files are created:
The “ExternalTasks_err.log” is empty (0Kb in size), indicating that the execution was successful. We can open the “ExternalTasks.log” to verify that our tasks executed as expected. In this case, the tasks are simply showing some echoes:

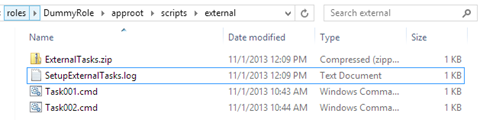

Inside the “external” subfolder we can found all the downloaded .zip file, the unzipped contents and another log about the downloading and task processing steps:
In the case you need to get a service configuration value from a external task, you can use the awesome power of combining Powershell with managed code. The following Powershell function allows you to get a configuration setting value from inside your external startup in a .ps1 file:
[void] [System.Reflection.Assembly]::LoadWithPartialName("Microsoft.WindowsAzure.ServiceRuntime")
function Get-ConfigurationSetting($key, $defaultValue = "")
{
if ([Microsoft.WindowsAzure.ServiceRuntime.RoleEnvironment]::IsAvailable)
{
return [Microsoft.WindowsAzure.ServiceRuntime.RoleEnvironment]::GetConfigurationSettingValue($key)
}
return $defaultValue
}
Once you have defined the function, you can use it with the following syntax. Note that the second parameter for the default value is optional.
$mySetting = Get-ConfigurationSetting "SettingName" "myDefaultValue"
Downloading and executing external startup tasks increase the versatility of the role startup tasks since you don’t need to repackage and upload your cloud services to change the behavior. By simply changing a setting they are automatically downloaded and executed previous starting the worker role.
You can download the example code from this Url: http://sdrv.ms/1dY86lt
Un saludo & Happy Coding!
